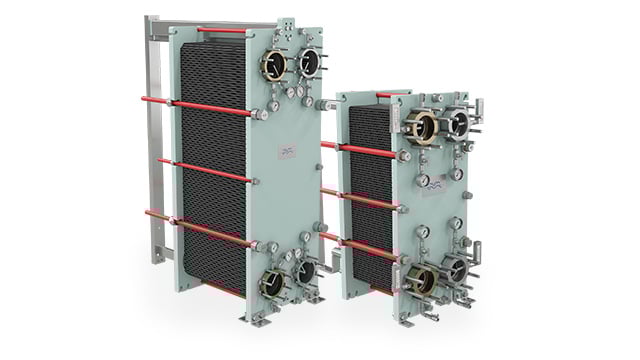

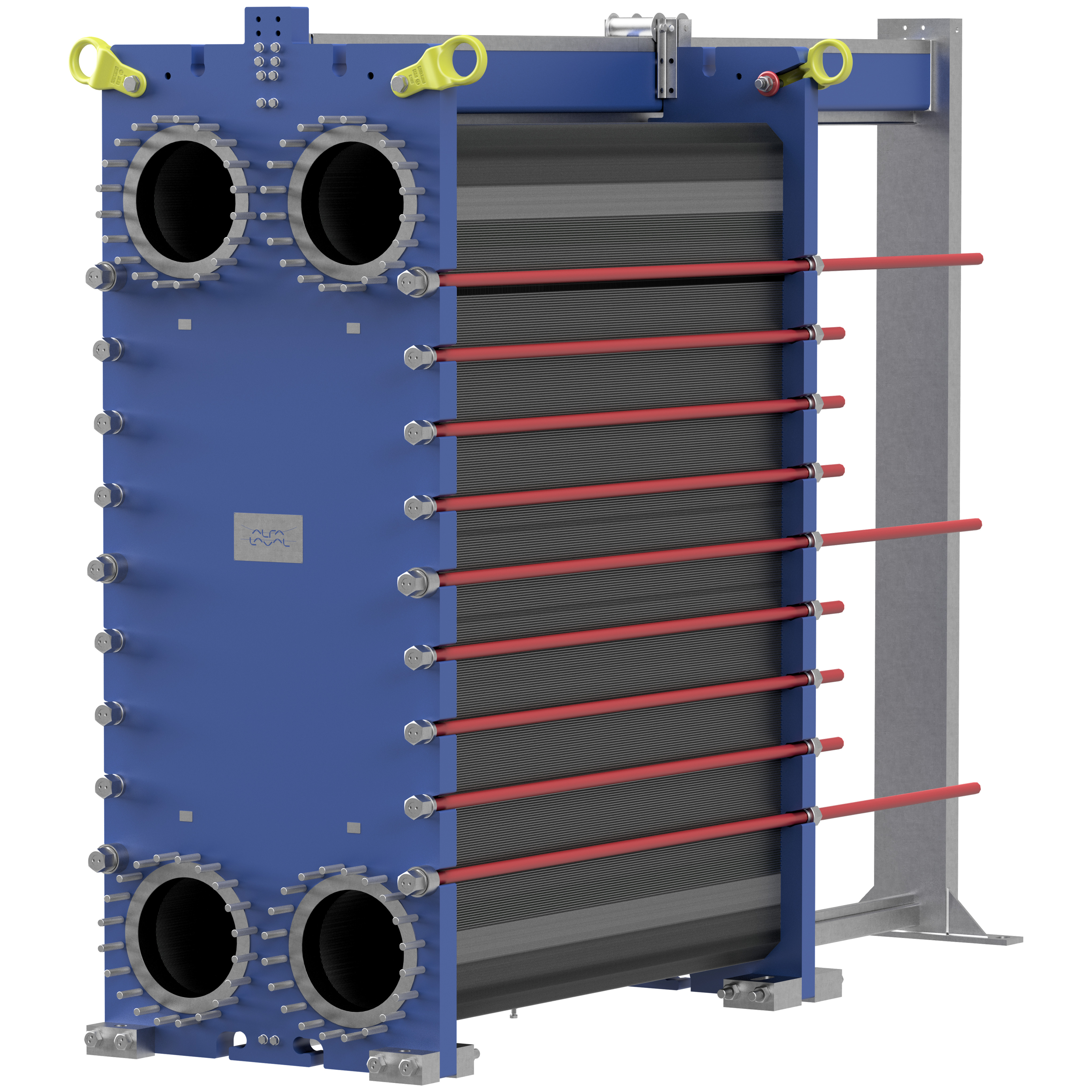

Marine gasketed plate heat exchangers

Alfa Laval has been developing heat transfer technology for more than 80 years and has been active in the marine industry for over a century. Based on that vast wealth of experience, our engineers have designed gasketed plate heat exchangers that set entirely new standards – not only for reliability, but also for thermal performance and ease of service.

marine GPHE

The marine industry’s most modern line of plate heat exchangers

  • Superior reliability and energy efficiency
  • Small size and footprint (CompactFrame™ design)
  • Minimal fouling (CurveFlow™ plate distribution area)
  • Easy installation and service (five-point alignment system)
  • Optimized global supply chain and production for smallest environmental footprint

Suitable for any vessel, Alfa Laval gasketed plate heat exchangers excel in applications from general heating and cooling to heat recovery, condensation and evaporation. With their innovative features, they take reliability to an all-new level and save crews time and effort during maintenance. Above all, their design minimizes fouling and maximizes heat transfer capabilities, which ensures the highest possible energy efficiency.

Productos clave

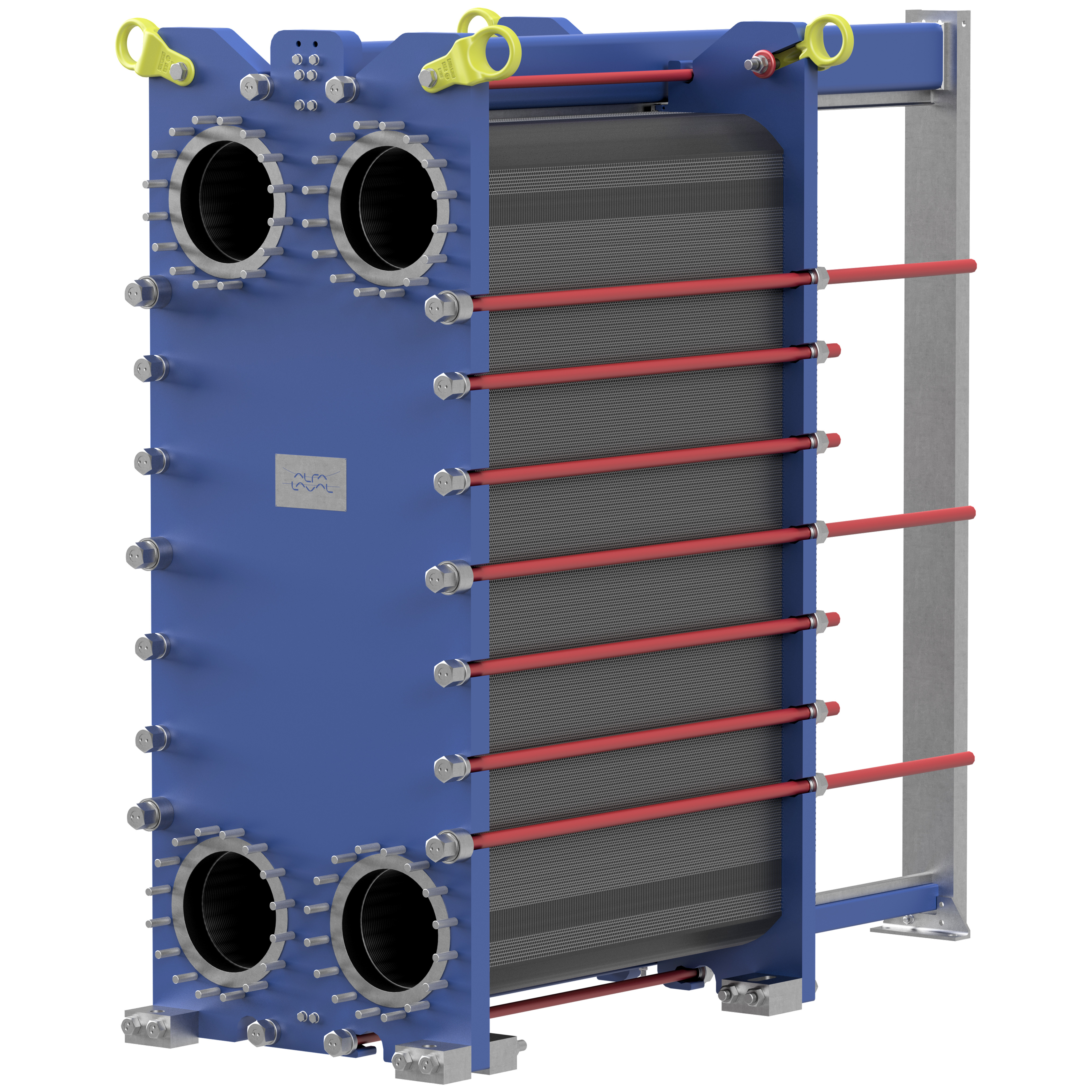

Gasketed plate heat exchangers for your vessel

Compact, reliable and energy-efficient, Alfa Laval gasketed plate heat exchangers are also safe and simple for crews to maintain. Our flexible marine line provides the right match for your needs today – with the possibility to adjust capacities later.

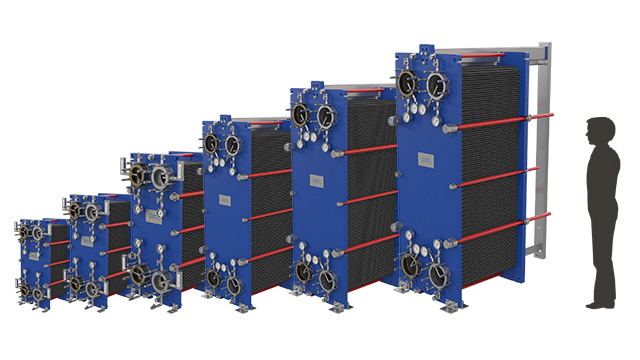

marine GPHE range
  T6
DN 60
T10
DN 100
T15
DN 150
T21
DN 200
T25
DN 250
T35
DN 350
H (mm) 890 1054 1833/1781 2082 2761 2875
W (mm) 320 470 610/650 755 913 1174
Max flow rate (m3/h) 60 160 370 650 1000 1970
Capacity (kW) – water duty with LMTD 6 800 3 000 9 000 18 000 28 000 35 000

Services

Red de servicio marino

Nuestra red de servicio marino le proporciona soporte con piezas y conocimiento experto allí donde esté y siempre que lo necesite. Al garantizar mayor tiempo de operación, disponibilidad y optimización, le proporcionamos tranquilidad y maximizamos el retorno de la inversión.

Más información sobre nuestras ofertas de servicios

¿Cómo podemos ayudarle?

Póngase en contacto con nosotros si tiene cualquier pregunta o solicitud de servicio.

Póngase en contacto con nosotros

Para el servicio de emergencia marítimo, llame al teléfono +46 4636 7700.

Documents

Heating and cooling in an engine room

On a ship, there are many types of machinery with a cooling demand. When the heat energy cannot be recovered or utilized, the total costs of transferring it away from the machinery should be kept to a minimum. Alfa Laval can ensure a cost-effective central cooling system through our portfolio of innovative plate heat exchangers. Our gasketed plate heat exchangers have unique features that reduce the running costs for engine room cooling – and contribute to sustainability.

Engine-room-hero-vignette

Are you on a quest to save energy?

Alfa Laval is setting the standard for thermal efficiency of plate heat exchangers. Bringing together innovative features improving energy efficiency and minimizing downtime we can accelerate the transition to more sustainable solutions and reach net-zero by 2050.

TS45 plate on grey medium shot 4 640x360

Alfa Laval technology powers sustainable operations on Maersk’s pioneering methanol-fuelled container vessel

In a world where sustainability is increasingly important, A.P. Moller-Maersk has set sail with the world’s first methanol fuelled container vessel. Equipped with Alfa Laval’s solutions for methanol as fuel, this vessel shows how innovative solutions and equipment can help shipping companies adapt to the evolving energy landscape and environmental regulations.

maersk-vessel 640x360

Exija nuevos estándares

Le presentamos los intercambiadores de calor de placas con juntas más modernos del mundo. Descubra cómo nuestra línea de próxima generación de intercambiadores de calor de placas con juntas puede brindarle una mayor eficiencia, una mejor fiabilidad y una facilidad de mantenimiento superior.

Demand new standards Webbanner EN

¿Necesita archivos BIM?

Los intercambiadores de calor de Alfa Laval ahora están disponibles en la infraestructura digital de objetos BIM. Descargue o acceda a una vista previa de los archivos BIM ("Building Information Modeling" o modelado de información para la construcción) para sus soluciones de transferencia de calor.

header tools 640x360

How it works

The heat transfer area of a gasketed plate heat exchanger consists of a series of corrugated plates, assembled between a frame and pressure plates to retain pressure. Gaskets act as seals between the plates. Fluids normally run counter-currently through the heat exchanger. This gives the most efficient thermal performance and enables a very close temperature approach, ie the temperature difference between the exiting process medium and the entering service medium.

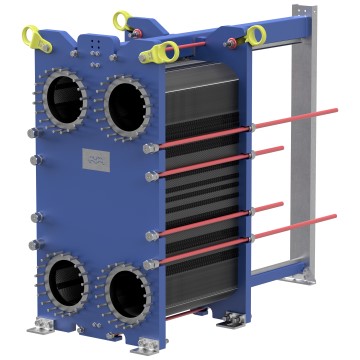

Alfa Laval liquid/liquid gasketed plate-and-frame heat exchanger

Features that make the difference

The Industrial line is equipped with features that turn this high-performance family into efficient and reliable workhorses that are easy to service and maintain over the whole product lifecycle.

For efficiency

By improving the efficiency of your heat exchanger, you can maximize production and minimize energy consumption to reduce your power bill and improve your environmental footprint.

See product animations below or get more information and listen to our technical experts.

CurveFlow™
distribution area

Improves media flow and minimizes risk of fouling.



OmegaPort™
noncircular port holes

Enhances media flow and thermal efficiency.

FlexFlow™
plate design

Improves thermal efficiency and optimizes pressure drop utilization.

For reliability

We are always looking to increase the reliability of every aspect of our gasketed plate heat exchangers.
We focus on durable designs based on robust materials and safe manufacturing processes.

See product animations below or get more information and listen to our technical experts.

PowerArc™
plate pattern divider

Improves plate rigidity for longer lifetime.

Five-point alignment

Ensures reliable plate positioning and easy to service for large units.

SteerLock™
plate alignment

Ensures reliable plate positioning and easy service.

For serviceability

The simple opening and closing of the plate-and-frame design with gaskets enables hassle-free inspection and service. It also enables you to easily adapt the unit to new process conditions.

See product animations below or get more information and listen to our technical experts.

ClipGrip™
gasket attachment

Ensures perfect seal and trouble-free maintenance.

Tbar symbolT-bar roller

Provides a lower unit that is easy to service.

Bearing boxes

Guarantees an easy-to-open unit for smoother, more efficient maintenance.

Compact frame

Facilitates maintenance and minimizes service area requirement.
