Los condensadores AlfaCond están diseñados específicamente para la condensación de vapor al vacío. Estos condensadores de superficie de placa son ideales para su uso en aplicaciones tales como condensadores de vacío en sistemas de evaporación, condensadores de etanol en plantas de bioetanol, condensadores de vapor en refinerías de azúcar y como condensadores de turbina en plantas de energía pequeñas. Con su diseño compacto, AlfaCond es fácil de instalar donde el espacio es crucial.
Highly efficient and very compact
Highly efficient and very compact, AlfaCond is the world's first plate condenser specifically designed for condensing under vacuum. Due to its compact size and efficient design, AlfaCond has become the preferred alternative to bulky indirect shell-and-tube condensers. Also, AlfaCond is easy to clean by means of Cleaning-in-Place (CIP) or mechanically.
AlfaCond is an alternative to direct condensers when condensate recovery is the goal and when there are space constraints. The AlfaCond can be configured with or without subcooling of the condensate. Non-condensables are removed from the condensate outlet pipe and led to the vacuum system.
Equipped with well-designed features, AlfaCond heat exchangers are easy to maintain and have a long service life. AlfaCond features the glued gasket, which is a two-component, oven-cured epoxy glue keeps the gasket in place during any possible cleaning condition. Additionally, the pressure plate roller, the bearing boxes on tightening bolts, and the 5-point alignment system with reinforced hangers make opening and closing the heat exchanger quick, and easy without the need for heavy tools or the risk of damaging the plates.
Peace of mind
Alfa Laval global service network is never far away.
- Optional sub-cooling of condensate and non-condensable gases
- Flexible configuration
- Easy to install
- High serviceability
- Access to Alfa Laval’s global service network

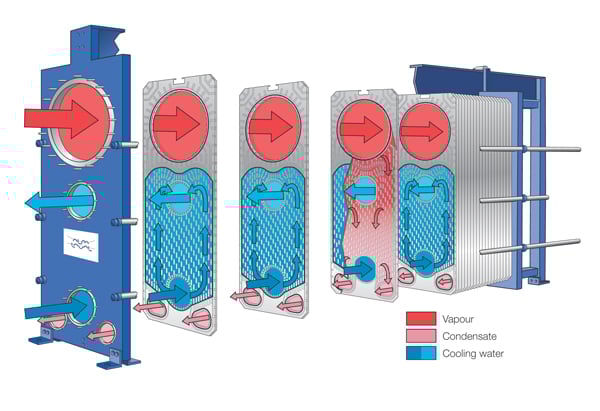

The heat transfer area of a gasketed plate-and-frame heat exchanger con sists of a series of corrugated plates, assembled between the frame and pressure plates, which retain the design pressure. The sealing between the plates on the AlfaCond alternates between laser welds and gaskets. It has a unique porthole configuration that is specifically designed for vacuum condensation. Vapour condenses in the welded channel and the cooling water passes through the gasketed channel.
The channel gap size is asymmetric with a larger gap on the vapour side and a smaller gap on the cooling water side. The result is a very low pressure drop on the vapour side and high velocity and turbulence on the cooling water side. Together, these maximize heat transfer efficiency and minimize fouling.
