Aalborg tipo-D

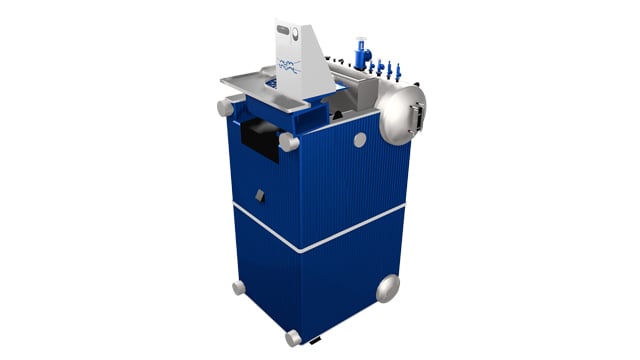

The Alfa Laval Aalborg D is a large-capacity marine boiler for producing steam or hot water, especially on tankers. Fired with oil or gas, it has a D-type design, in which the steam drum and water drum are connected by a generating tube bank. The boiler’s furnace, which contains little refractory, has membrane walls with external downcomers that promote effective circulation. Delivered as a complete unit, the Aalborg D has a steam capacity range of 25–120 t/h and a design pressure of 18 bar(g).
Large-capacity fired boiler with proven design
- Match your capacity needs with standard boiler sizes, delivered as complete units for easy installation
- Configure for oil or gas as fuel, changing no more than the burner
- Produce steam with high efficiency and natural water circulation
The Aalborg D boiler is especially suited for installation on tankers. It can be used to produce steam for cargo pump turbines, heating and tank clean
Reasons to choose the Aalborg D
The Aalborg D has proven its value on tankers, securing high output with a simple and reliable D-type boiler design.
|
Flexible fuel configuration The same Aalborg D design can be fired with oil or gas. The Aalborg KBSD burner is used for oil, while the Aalborg MPF is recommended for dual-fuel operation. Both are steam-atomizing burners. |
Tube design options The boiler’s combustion section can be delivered with either bare tubes or straight tubes with bent pins. Both provide a high coefficient of heat transfer and limit pressure loss. |
Optimized furnace Constructed with membrane walls, the Aalborg D furnace is fully water-cooled and completely gas-tight. |
|
Natural circulation Large, unheated downcomers are welded to the outside of the Aalborg D drums. The downcomers secure natural water circulation with a high circulation ratio. |
